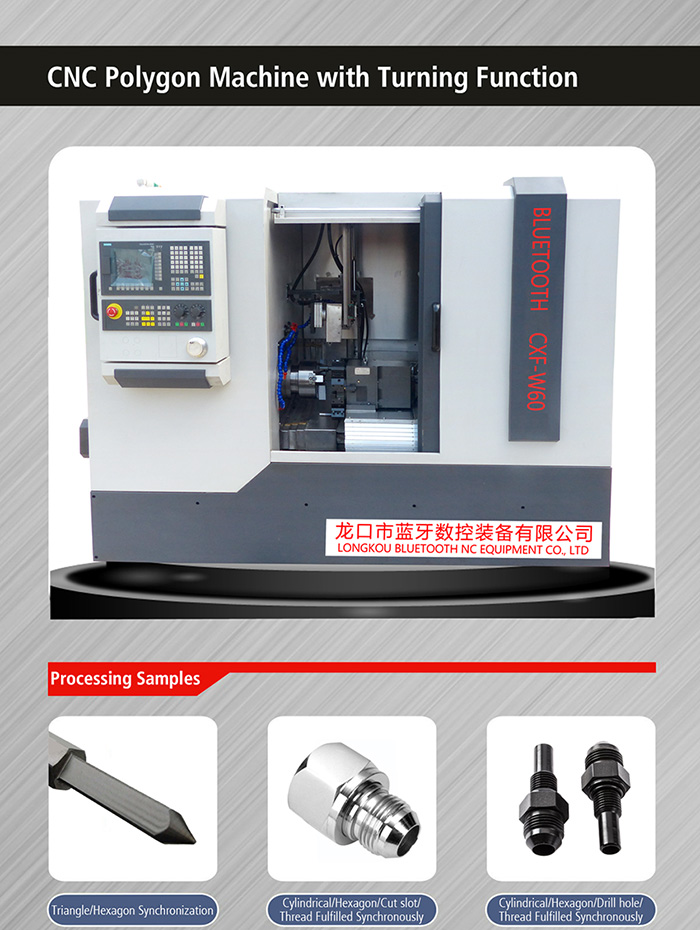

Characteristics of CXF-W60 CNC Polygon Machine Tool:

1. Full protective machine body avoid man-machine touch directly. Meanwhile, guarantee the nice appearance of machine. Low pressure operation box, eliminate the risk of electric.

2. Automatic lubrication system which can supply lubricating oil regularly. Make sure the machine can work stably.

3. Hydraulic closed chunk can insure the safe of workers and won’t damage the workpiece.

4. Counting automatically. You can control the amounts of workpieces. Adjustable supporting pads can control the stability of machine. Can choose proper feeding system according the features of workpieces.

You needn’t change the cutter with 2,4,6 equilateral surface. Stepless speed control device. You can adjust the speed of spindle and feeding.

Cost comparison:

Speed: Making hexagon bolt 20 seconds per one.

Traditional milling machine make hexagon bolt 120 seconds per one.

The efficiency is 6 times than traditional milling machine.

Labors: One person can operate multiple machines.

One person can only operate one traditional milling machine.

Electricity: Power of this machine is 7.5kw.

Power of milling machine is 9.0kw.

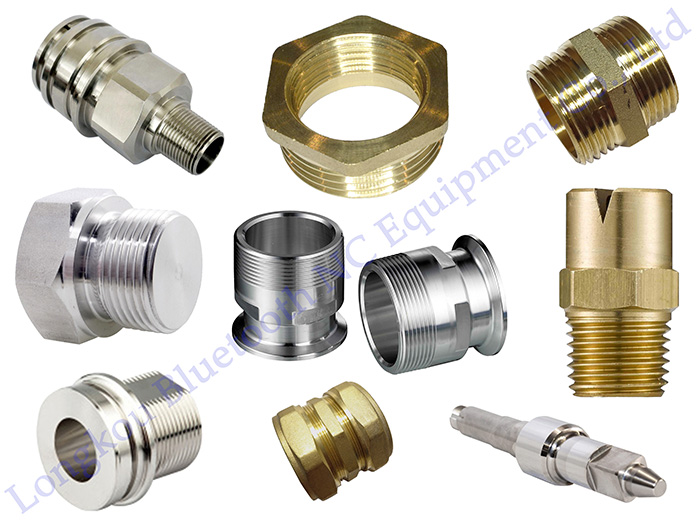

Machining Two Flats

Machining Two Flats

Machining Hexagons

Machining Octagons

Machining Square / Rectangle

Machining Tapered Polygons

Machining Contoured Polygons

Machining Stepped flats/Polygons Slots on the Face

Machining Splines

Any other flat surfaces
